Compressor Power Optimization Engineering: In thermodynamic refrigeration cycles, elevated condensing pressures drastically increase compressor power draw and accelerate mechanical wear. Tan Long SUS304 Evaporative Condensers combine dual cooling mechanisms: high-velocity forced draft airflow and latent heat rejection via continuous water film evaporation, bringing condensing temperatures down close to ambient wet-bulb, cutting compressor electrical consumption by up to 25%. 15% – 25% in central compressor station energy demand.

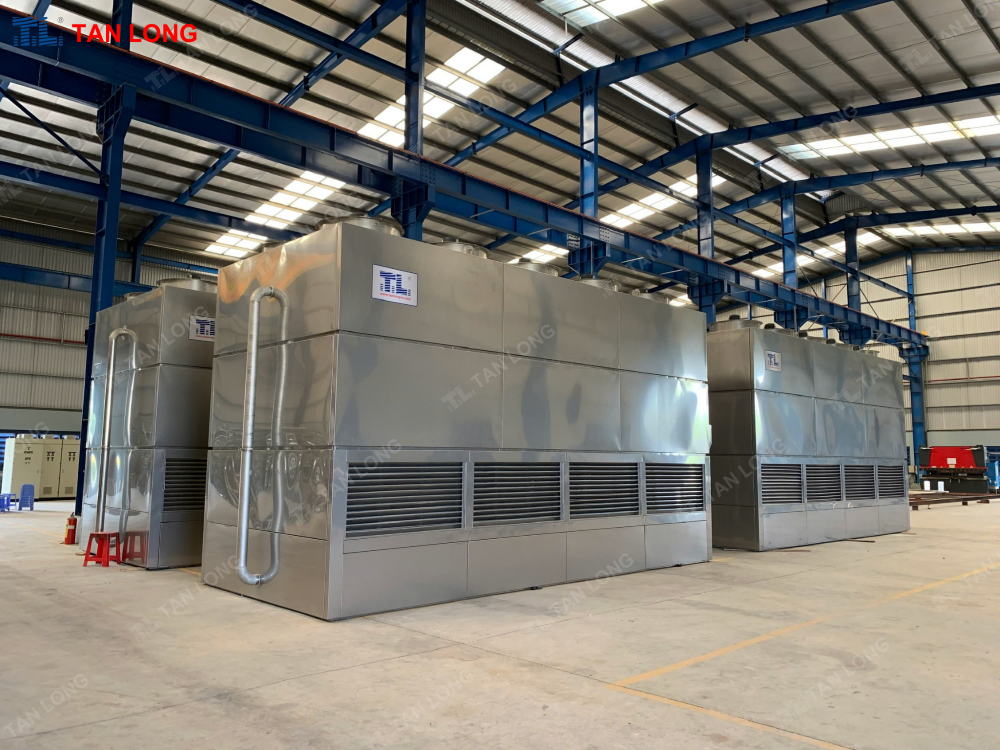

1. Heavy-Duty Stainless Steel Architecture of Tan Long Evaporative Condensers
- Monolithic Bent SUS304 Stainless Tube Coil Bank: Imported SUS304 tubes rated to 28 bar working pressure (35 bar hydrostatic test). Continuously bent without internal intermediate welds in the humid air stream, eliminating 100% of refrigerant leakage risks. ammonia NH3.
- SUS304 or Hot-Dip Galvanized Casing Structure: Superior corrosion resistance against harsh coastal tropical weather and circulating chemical water treatments.
- Clog-Free Wide-Orifice Spray Nozzles: Large-orifice inverted cone nozzles distribute continuous water films across 100% of coil surfaces, eliminating dry hot spots.
- Aerodynamic Airfoil Axial Fan Assemblies: IP55 waterproof fan motors with electronically balanced airfoil blades delivering high-volume airflow with low acoustic emissions.
2. Efficiency Comparison: Evaporative Condensers vs. Air-Cooled / Shell-and-Tube
| Evaluation Criteria | Evaporative Condensers Inox Tan Long | Air-Cooled Condenser | Shell & Tube Condenser + Cooling Tower |
|---|---|---|---|
| Operating Condensing Pressure | Lowest (11 – 12 bar for NH3) | Very high in summer (16 – 18 bar) | Moderate (13 – 14 bar) |
| Compressor Rack Power Consumption | Saves 20% – 25% electricity | Highest power consumption | Additional power required for cooling tower and pumps |
| Water Consumption | Very low (only 1-2% evaporation make-up) | No water required | High water loss due to cooling tower drift and splash |
| Installation Footprint | Compact, All-in-One integrated footprint | Extremely bulky, requires large open clearance | Requires separate areas for shell & tube vessel and cooling tower |
| Maintenance & Cleaning Cost | Effortless descaling with closed-loop CIP chemical circulation | Finned coil dust clogging, labor-intensive cleaning | Frequent algae and biofilm buildup inside tube bundles |
3. Continuous Seamless Inox 304 Coil Bending Technology
The heat exchanger coil is the vital core determining evaporative condenser longevity. At our Duc Hoa factory, Tan Long operates fully automated precision CNC bending lines:
- Seamless SUS304L Stainless Steel Tubing: Wall thickness of 1.5mm - 2.0mm engineered for up to 35 bar operating pressures, eliminating pitting and galvanic corrosion from brackish or saline cooling water.
- Continuous U-Bend Forming: Minimizing tube joints; every single connection is precision TIG welded with 99.999% high-purity Argon shielding followed by full chemical pickling and passivation.
- Triple-Stage Leak Detection Protocol: Submerged in pressurized water tanks at 30 bar for 24 hours, paired with high-sensitivity Helium mass spectrometer leak testing down to 10⁻⁶ mbar·l/s.
4. Model Specifications & Heat Rejection Ratings for Evaporative Condensers
| Model / Spec | Heat Rejection Capacity (kW) | Airflow Rate (m³/h) | Water Pump Power (kW) | Dimensions L × W × H (mm) |
|---|---|---|---|---|
| TLE-150 | 175 kW | 22.000 m³/h | 1.1 kW | 1.850 × 1.200 × 2.400 |
| TLE-300 | 350 kW | 45.000 m³/h | 2.2 kW | 2.600 × 1.650 × 3.100 |
| TLE-600 | 700 kW | 88.000 m³/h | 4.0 kW | 3.800 × 2.200 × 3.800 |
| TLE-1200 | 1.400 kW | 175.000 m³/h | 7.5 kW | 5.600 × 2.800 × 4.500 |
| TLE-2500 | 2.900 kW | 360.000 m³/h | 2 × 7.5 kW | 8.900 × 3.600 × 5.200 |
5. Recirculating Water Treatment Guidelines to Prevent Scaling
Langelier Saturation Index (LSI) Management
Maintain the Langelier Saturation Index strictly within 0.0 to +0.5 to ensure water is non-corrosive while preventing calcium carbonate (CaCO3) precipitation on heat exchange coils.
Automated Periodic Blowdown
Install automated blowdown motorized valves controlled by TDS conductivity sensors (below 1.500 µS/cm), preventing mineral concentration buildup in the water sump basin.
In-Depth Technical FAQs on Evaporative Condensers Inox
1. What is the expected lifespan of Tan Long's SUS304 evaporative condenser coils?
Fabricated entirely from 2.0mm heavy-gauge SUS304 stainless steel, our heat exchange bundles offer a working lifespan exceeding 20 years, completely impervious to honeycomb pitting corrosion compared to conventional galvanized black steel coils.
2. How does an evaporative condenser save energy compared to standard cooling towers?
Evaporative condensers depress condensing temperatures close to wet-bulb ambient (approx. 32°C vs. 40°C for air-cooled units). Thermodynamically, every 1°C reduction in condensing temperature yields 2% to 3% compressor energy savings, translating into 20% to 25% overall refrigeration facility power reduction.
3. What is the descaling and cleaning procedure for evaporative condensers?
Tan Long integrates convenient drain manifolds and oversized inspection access doors. Semi-annually, specialized non-corrosive descaling inhibitors circulate through the system, maintaining clean stainless surfaces and optimal heat transfer efficiency.
